Project list

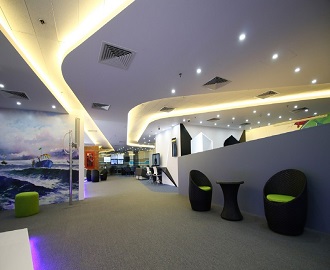

Innovation Lab

  • Client: Grameenphone
  • Year completed: 2019
  • Project leader: Faiza Ali

A complete project with Grameenphone.This is an Open Lab for Employees to bring their innovative ideas Into realities specially for IoT devices, Mobile network optimization, Building Management System and many more.

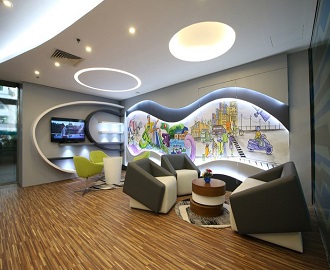

Executive Lounge

  • Client: Grameenphone
  • Year completed: 2019
  • Project leader: Faiza Ali

This is a high level project, designed with premium touch. This project was executed by VX Services Limited for Grameenphone which is specially made only for high value customers and for business meetings.

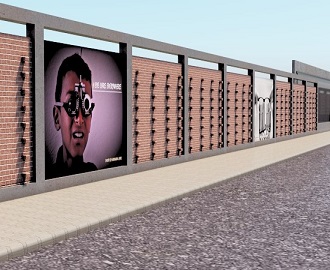

Boundary Wall

  • Client: Ispahani Islamia Eye Institute & Hospital
  • Year completed: 2019
  • Project leader: Muhammad Shafeen Minhaz

This is a completed project of Islamia Eye Hospital which is totally designed and built by VX.

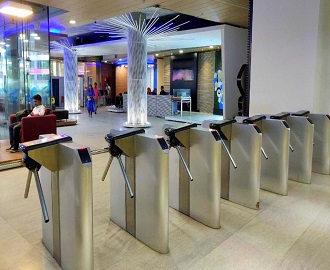

Paxton Access Control

  • Client: Grameenphone
  • Year completed: 2019
  • Project leader: Mozaffar Hossain & Aminullah Majumder

This is one of the biggest projects of the year. We have implemented Access Control System for Grameenphone all around Bangladesh. It offers a secure, convenient, flexible and cost-effective way of controlling access to the office or building.


Hardware:

  1. Controller: Paxton Net2 Plus
    - This is 32 door Net2 system from Paxton with extra features like fire alarm, CCTV integration and many more.
  2. Card Reader: HID iCLASS RW400

Software: Net2 Access Control

  • It is built on IP technologies
  • Unlimited number of workstations is accessible
  • It has great reporting and real time event is available

Summary: Currently we have connected around 230 controllers all around Bangladesh and all of them are currently live in our system. Also we have introduced turnstile with it. Beside our service is available 24/7 on any kind of security issue.

GP 1000 BTS CCTV

  • Client: Grameenphone
  • Year completed: 2019
  • Project leader: Mozaffar Hossain, Aminullah Majumder & Nazmul Hasan Rabbi

This is a huge project of Grameenphone Ltd which is executed by our company. We have installed  CCTV  System for Grameenphone all around Bangladesh(1000-bts site).

Some of the Hardwares which are used for the project are:


Camera: Hikvision
  (1.0 MP CMOS Network Dome Camera):DS-2CD1101-I
►1/4" progressive scan CMOS
►Up to 1.0 megapixel
►2.8 mm/4 mm/6 mm fixed focal lens
►Up to 30 m IR range
►Dual stream
►Up to 1.0 megapixel
►Digital WDR (Wide Dynamic Range)
►3D DNR (Digital Noise Reduction)
►PoE (Power over Ethernet)
►IP67, IK10
►Mobile monitoring via Hik-Connect

NVR(Network Video Recorder):Hikvision
   DS-7716/7732NI-K(4K Embedded NVR)
   ►Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
   ►Up to 8 Megapixels resolution recording
   ►16/32-ch network cameras can be connected with 160M/256M incoming bandwidth
   ► Third-party network cameras supported
   ► Up to 4 SATA interfaces
   ►Support dual-os to ensure high reliablility of system running
   ►Support various VCA detection alarm and VCA search
   ►Support H.265/H.264/MPEG4 video formats

Network Switch: D-Link
  (D-Link DGS-1210)
   ►28 Gigabit ports: 28 1000BASE-T with 4 (Combo) SFP
   ►24 PoE ports with 193 Watts power budget
   ►Supports IP Interfaces and Static Routes
   ►D-Link Green Technology
   ►IEEE 802.3az Energy Efficient Ethernet
   ►56 Gbps Switching capacity
   ►Advanced L2 switching and security features
   ►L2+ Static Routing
   ►Optional “standard mode” or “surveillance mode” management user interface
   ►193 W PoE budget

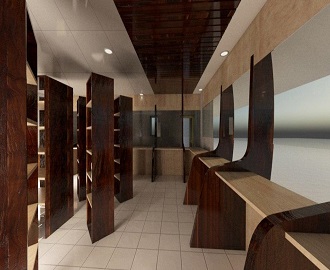

Pharmacy

  • Client: Ispahani Islamia Eye Institute & Hospital
  • Year completed: 2019
  • Project leader: Architect Mahboob Hassan

Pharmacy decorated with wooden board shelf, decorative and peripheral false ceiling. Its counter desk locally made of laminated board, mineral board (imported) false ceiling, decorative counter desk partition. Full height cabinet made of Laminated board with edging and best quality height adjustable channels.  Its wall cabinet made of Laminated board with edging and best quality height adjustable channels.

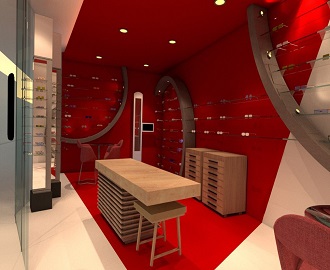

Optical Shop

  • Client: Ispahani Islamia Eye Institute & Hospital
  • Year completed: 2019
  • Project leader: Architect Mahboob Hassan

Optical cabinet made by Ply Board with mirror polished Liquor finish with tempered glass shelf with necessary accessories and fittings.Decorative and peripheral false ceiling made of gurjan frame and painted particle board. Red color plastic chair with gorgeous design.
